Effective lightning protection function
Zero delay forwarding automatically
Support PS232/485/422 three interface types
Automatic detection rate of serial port, discrimination and to control the data transmission
Working wavelength: 850 nm (multimode), 1310 nm (single mode), maximum communication rate of 500 KBPS
Optical fiber interface optional ST/SC/FC interface
Multimode communication reach 2 km, single-mode reached more than 40 km
DC36V ~ 72 v or AC85 ~ 72 v wide voltage input
Interface with 1500 w surge protection, 15 kv esd protection
The external power supply

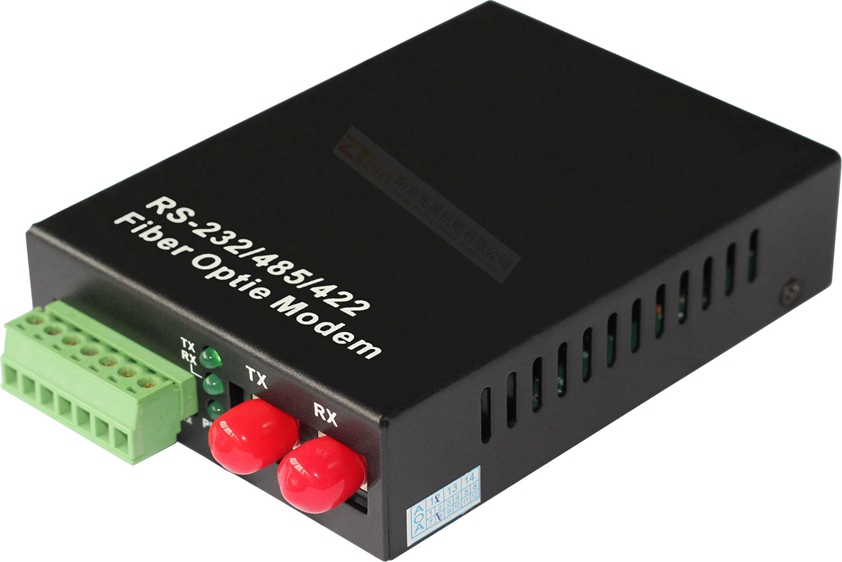

- ZT - 244 is a RS - 232 / RS - 485 / RS - 485 serial fiber MODEM, USES the industry standard design, the wall design support - rail DIN standards guide installation, installation is simple. At present, many users are using the RS - 232 / RS - 485 / RS - 485 serial fiber MODEM to solve the electromagnetic interference problem in engineering, and delay the RS - 232 / RS - 485 / RS - 485 serial port transmission distance to several kilometers or even dozens of kilometers. ZT - 244 is able to provide the user with the RS - 232 / RS - 485 / RS - 485 serial port end-to-end transparent transmission, because of using optical fiber transmission, in the optical fiber transmission signal light, there is no electrical conductivity, and thus has a strong anti-interference ability, will not be affected by high voltage and lightning.
standard Conform to the EIA RS-232,RS-422and RS-485standard The interface protection 600W Surge protection、1500W Esd protection Way to work The asynchronous job, point to point Electricity mouth form 8 A terminal Direction control The data flow automatic control technology
Automatically recognize and control data transmission direction
Working temperature -40~70 ℃ Baud rate 0-500Kbps,Automatically detects the signal rate Input power/energy consumption 5Vd The input voltage/2W Optical wavelength multimode 850nm,Single mode1310nm Electric transmission distance RS-232 mouth15 m，RS-485/422 mouth1200m The light transmission distance multimode 2 km，Single mode 40 Km above Load capacity RS-485/422 Mouth support32 A node（Can be customized by 128） model The product description ZT-244-M-(*) RS-232/422/485 Turn multimode fiber 850nm ZT-244-S10-(*） RS-232/422/485 Turn to single mode fiber 1310nm 10 Km ZT-244-W10-(*) RS-232/422/485 Turn to single mode fiber 1310nm 10Km
